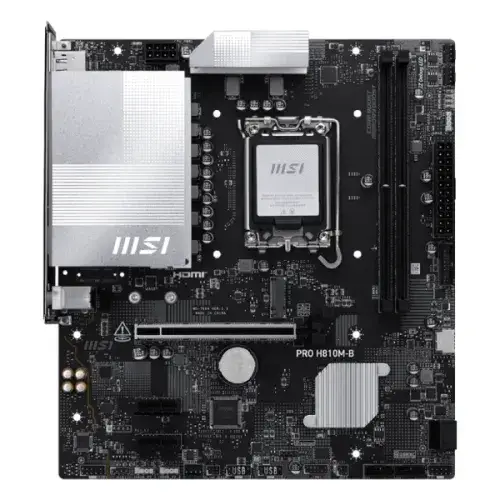

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Supported CPU | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 |
| BIOS | Flash BIOS Button |
| Form Factor | Micro-ATX |
| Audio | Realtek ALC897 Code |
| PCI | 1 x PCIe x16 slot supports up to PCIe 5.0 x16, 2 x PCIe x1 slots support up to PCIe 4.0 x1 |
| M.2 Socket | 1x M.2 |
| Type | DDR5 |
| Slots | 2 x UDIMM |
| Maximum Memory | 128GB |
| Graphics | 1x HDMI 1 x DP |
| HDMI | 1x HDMI |
| Display Port (s) | 1 x DP |
| USB (s) | 4 x USB 2.0 Type-A, 2 x USB 5Gbps Type-A |
| 4 x USB 2.0 Type-A, 2 x USB 5Gbps Type-A | Realtek RTL8125D 2.5G LAN |
| Supported Storage | 1 x M.2 slot (Key M) type s 2260/2280 Supports up to PCIe 4.0 x4 SATA Inteface 6.0Gb/s |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0 |
| Manufacturing Warranty | 3 Years Warranty |
Description
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard The MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard is a compact yet powerful MSI Intel motherboard engineered for next-gen AI PCs and high-efficiency workstations, supporting Intel Core Ultra (Series 2) processors on the advanced LGA 1851 socket. Designed with a space-saving micro-ATX form factor, it provides robust performance and essential features for productivity-driven users seeking a balance of power and footprint. As a modern MSI DDR5 motherboard, it supports dual-channel DDR5 memory for enhanced bandwidth, faster data access, and improved energy efficiency, while MSI’s Core Boost and Memory Boost technologies ensure stable power delivery and optimized signal integrity for consistent performance. This MSI H810 motherboard is well equipped for future upgrades with PCIe 5.0 compatibility and Lightning Gen4 M.2 slot for ultra-fast NVMe storage, alongside a high-speed 2.5G LAN port for smooth, reliable networking. Builders will find the board user-friendly thanks to MSI’s EZ PCIe Clip II for easy GPU handling, while a refined silver design lends a professional, clean aesthetic to any compact build. With rich connectivity including HDMI, DisplayPort, and VGA outputs and immersive audio backed by Audio Boost, the MSI PRO H810M-B delivers all the essentials of a dependable, high-performance MSI mATX motherboard making it an excellent choice for business-class systems, AI-powered desktops, and modern home PCs alike. If you’re looking for a reliable and future-ready MSI motherboard for Intel CPUs, this board packs substantial performance and functionality into an affordable, compact design.
