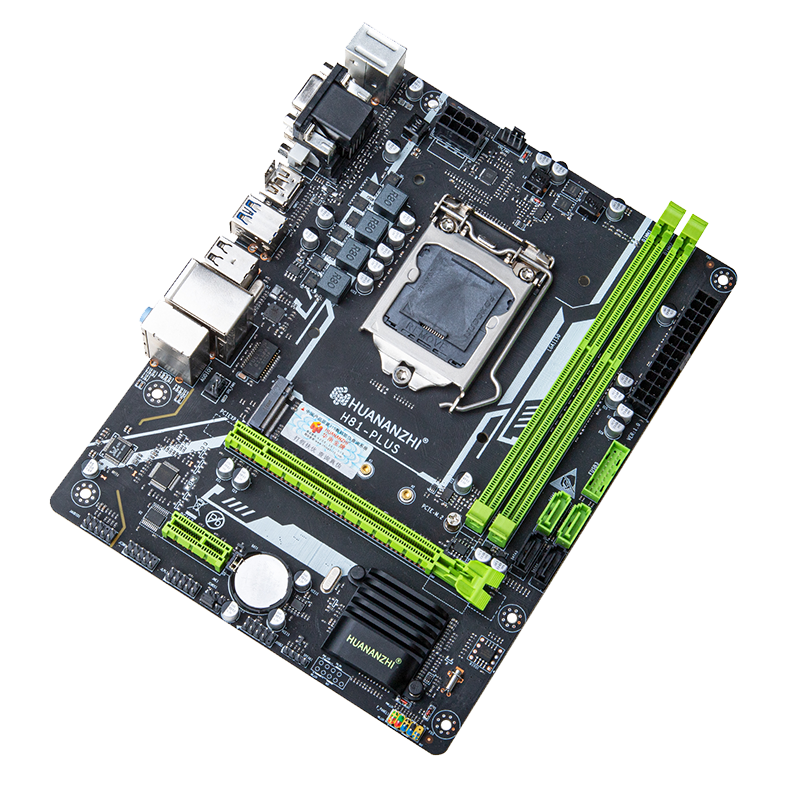

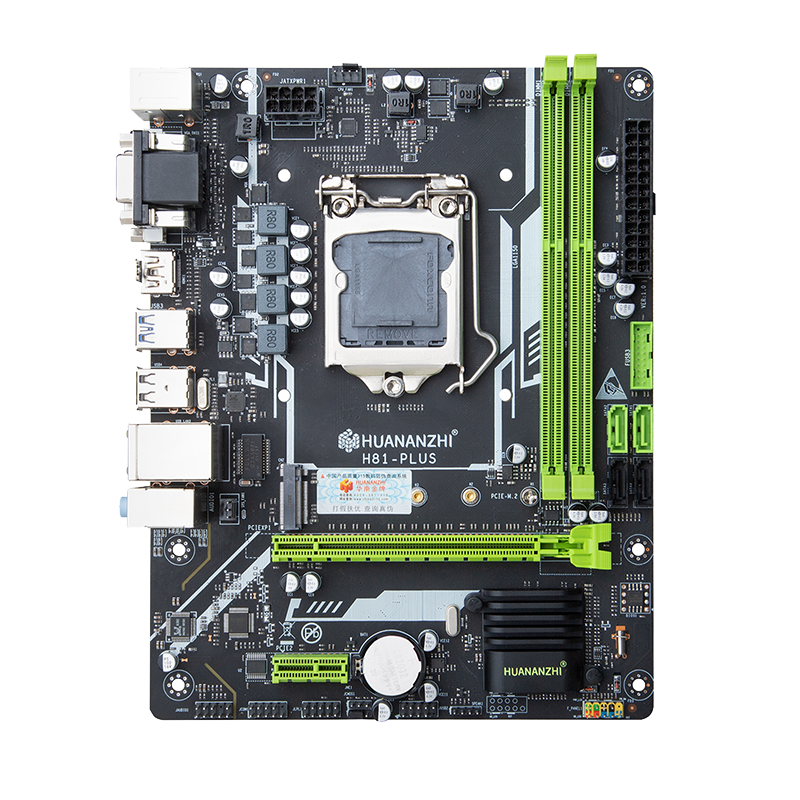

HUANANZHI H81 PLUS Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI H81 PLUS Motherboard |
| Main chipset | Intel H81 |
| CPU Socket | Support Intel LGA1150 |
| Memory slot | 2 x DDR3 memory slot |
| Memory standard | Support Dual channel DDR3 1600/1333MHz Memory，Max support 16GB |
| Storage interface | 2 x SATA3.0 6Gbps，2 x SATA2.0 3Gbps |
| Expansion Slots | 1x PCI Express3.0x16，1x PCI Express2.0x1 |
| Expansion interface | 1x M.2 2280 PCIEX4 2.0 20Gbps |
| Sound Track | 5.1 sound card |
| Network Card | Gigabit Ethernet |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| power supply | 4-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 220*170MM M-ATX |

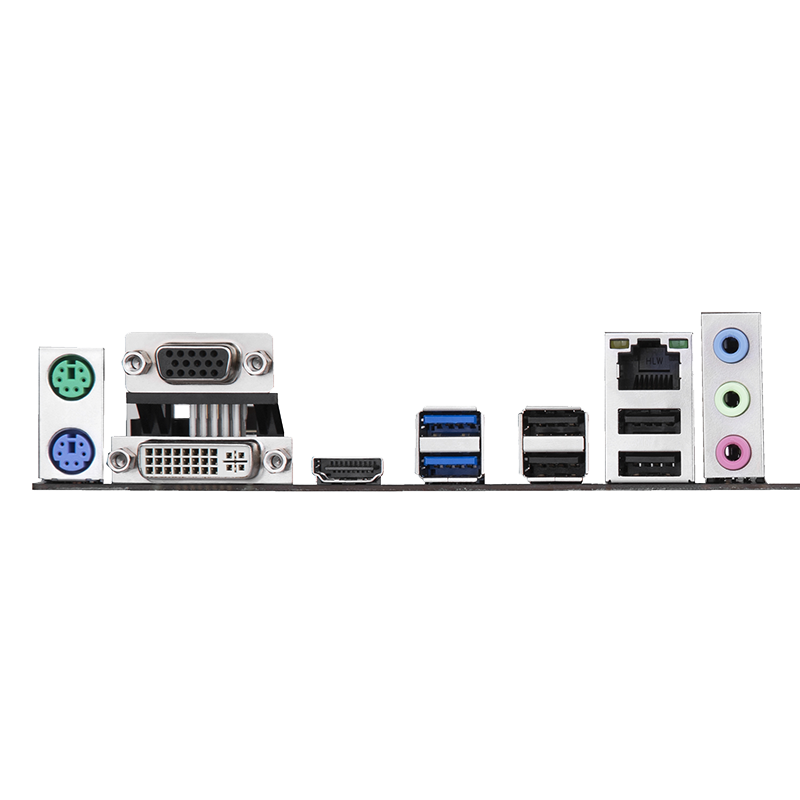

| Rear panel interface | 1xPS/2 Mouse and Keyboard port，4xUSB2.0，2xUSB3.0，1xRJ45Network card interface，1x3-hole audio interface，1x VGA，1x HDMI，1xDVI |
| Front panel interface | 1 x USB2.0 PIN，1 x USB3.0 PIN（USB2.0 speed)，1 xFront audioPIN，1xCOM PIN |
| Support system | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
HUANANZHI H81 PLUS Motherboard Experience stable performance and versatile connectivity with the HUANANZHI H81 PLUS Motherboard, crafted to support Intel LGA1150 processors and ideal for budget-friendly system builds. Key Features: Main Chipset: Intel H81 CPU Socket: Supports Intel LGA1150 CPUs Memory: 2 × DDR3 memory slots Supports dual-channel DDR3 1600/1333MHz Maximum capacity: 16GB Storage Interface: 2 × SATA 3.0 ports (6Gbps) 2 × SATA 2.0 ports (3Gbps) Expansion Slots: 1 × PCI Express 3.0 x16 1 × PCI Express 2.0 x1 Expansion Interface: 1 × M.2 2280 PCIe X4 2.0 (20Gbps) Audio: Built-in 5.1 channel sound card Networking: Integrated Gigabit Ethernet Power Interface: 24-Pin + 8-Pin connectors Cooling Support: 1 × CPU_FAN PIN 1 × SYS_FAN PIN Power Supply Design: 4-phase power supply for enhanced stability PCB: 4-layer high-quality PCB Dimensions: 220mm × 170mm (Micro-ATX Form Factor) Rear I/O Ports: 1 × PS/2 Mouse and Keyboard port 4 × USB 2.0 ports 2 × USB 3.0 ports 1 × RJ45 Gigabit LAN port 1 × 3-hole audio interface 1 × VGA port 1 × HDMI port 1 × DVI port Front Panel Connectors: 1 × USB 2.0 PIN header 1 × USB 3.0 PIN header (supports USB 2.0 speed) 1 × Front audio PIN header 1 × COM PIN header Supported Operating Systems: Windows 7 Windows 10 Windows 11 BIOS: AMI UEFI BIOS for better compatibility and user experience What's in the Box: 1 × HUANANZHI H81 PLUS Motherboard 1 × SATA Data Cable 1 × Warranty Card 1 × I/O Shield (Back Plate)
