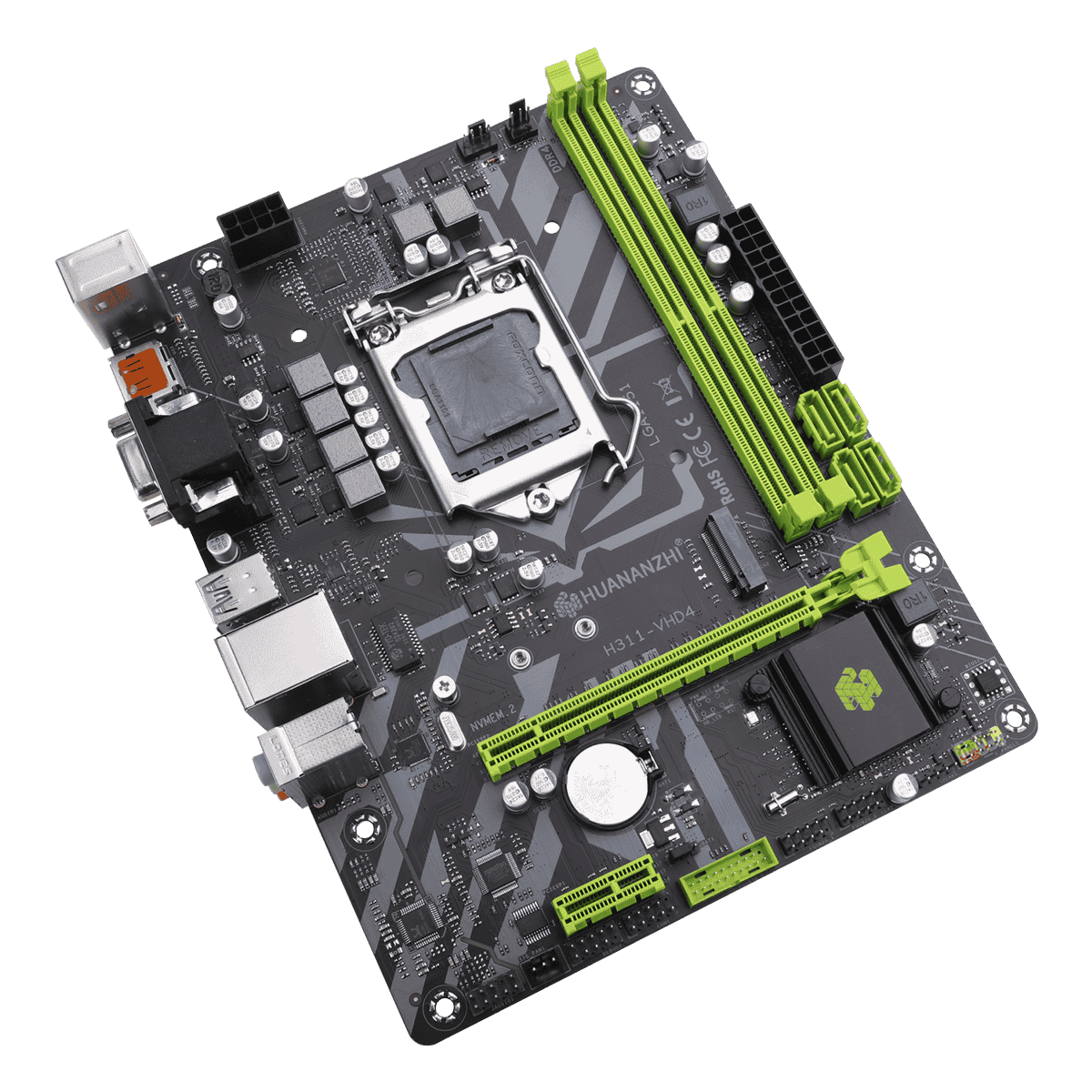

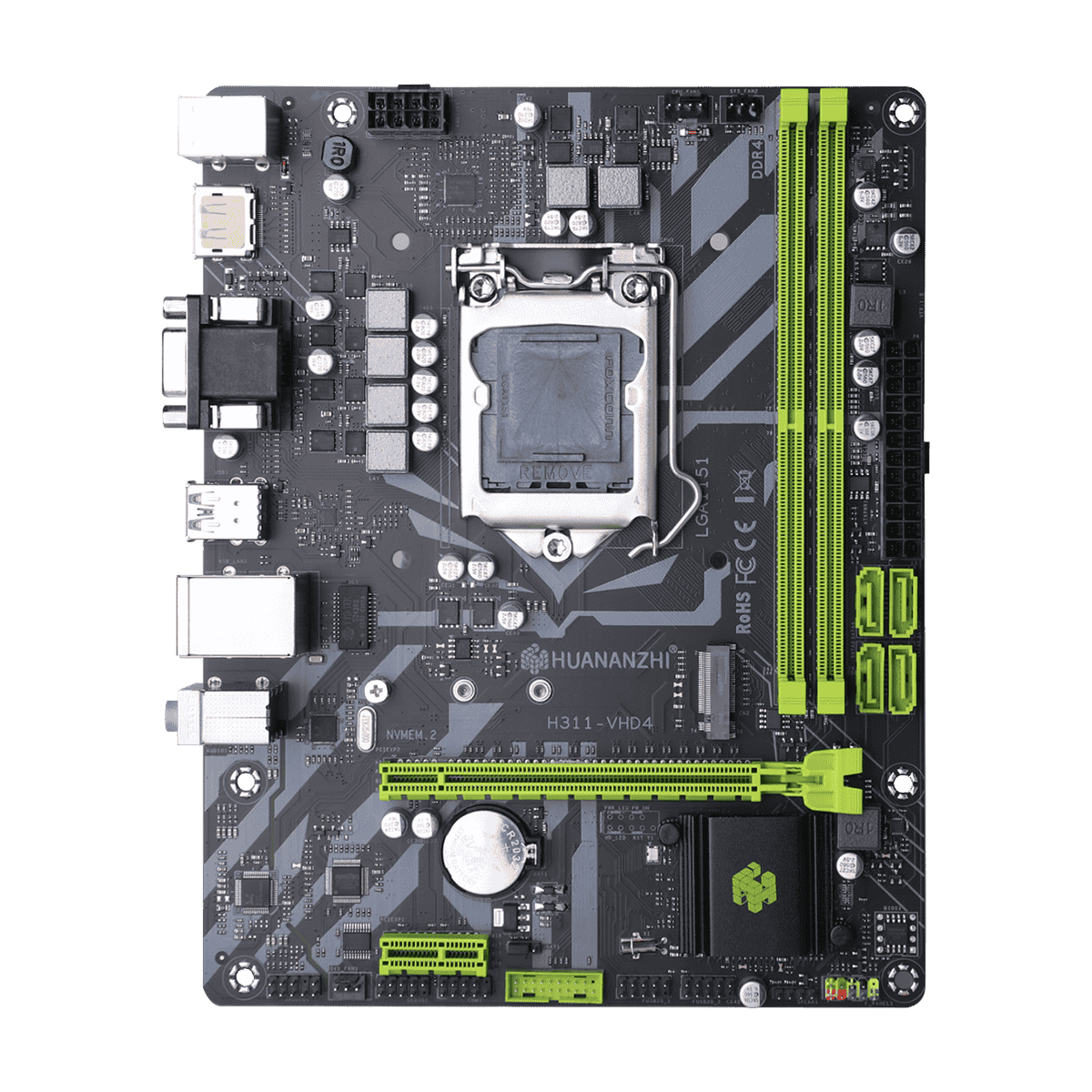

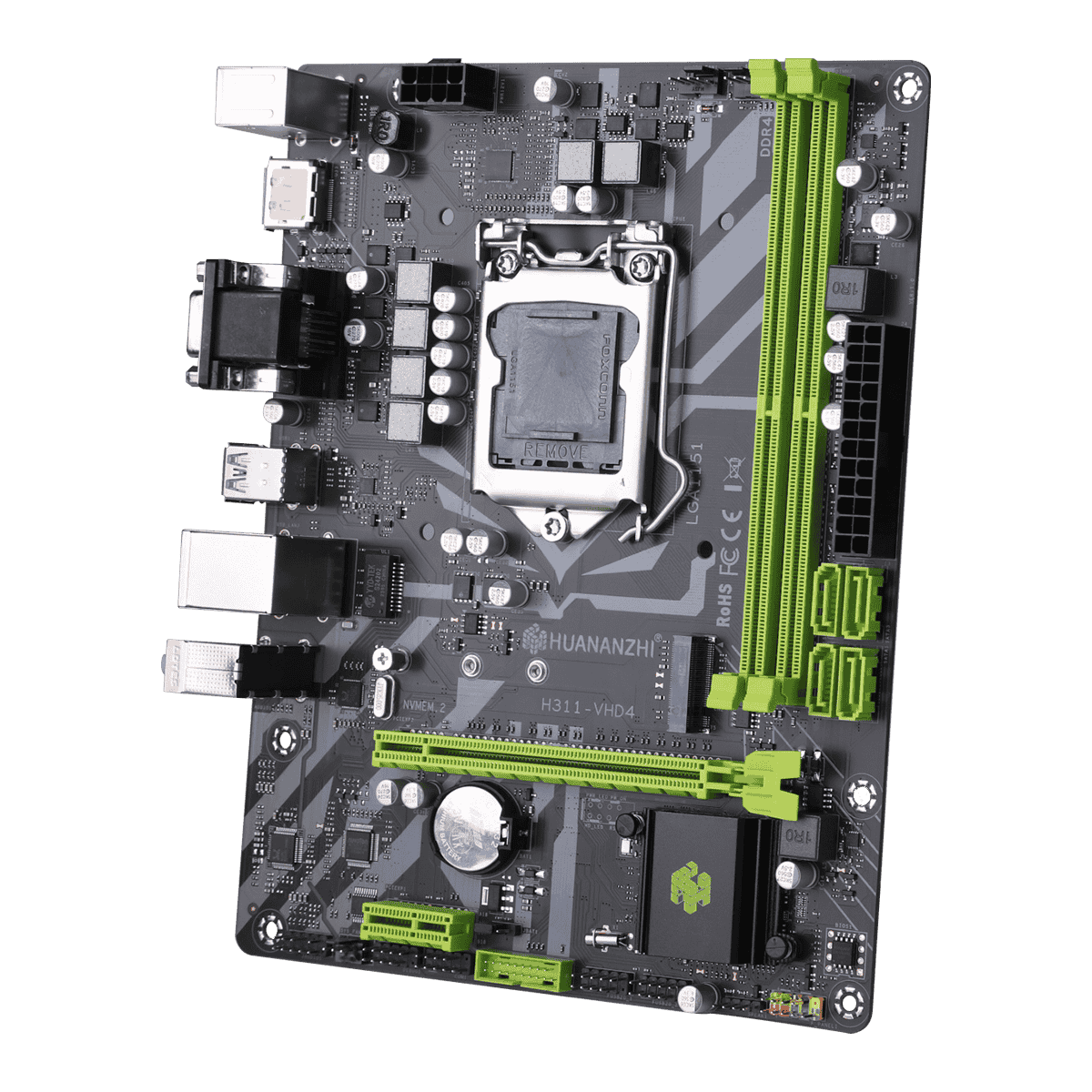

HUANANZHI H311-VHD4 Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI H311-VHD4 Motherboard |
| Chipset | Intel 100 Series Chipset |
| CPU Socket | Support Intel LGA1151 Platform Processors |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support Dual Channels DDR4 2666/2400/2133/1866MHz(Decided By CPU)，Max Support32GB |
| Storage Interface | 4xSATA 3.0 6Gbps |
| Expansion Slots | 1xPCI Express3.0 x16，1xPCI Express 2.0 x1 |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 2.0 |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Gigabit Network Card |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| Power Supply | 6-Phase Power Supply |
| PCB Layers | 4-Layer PCB |
| Dimension | 215*170MM M-ATX |

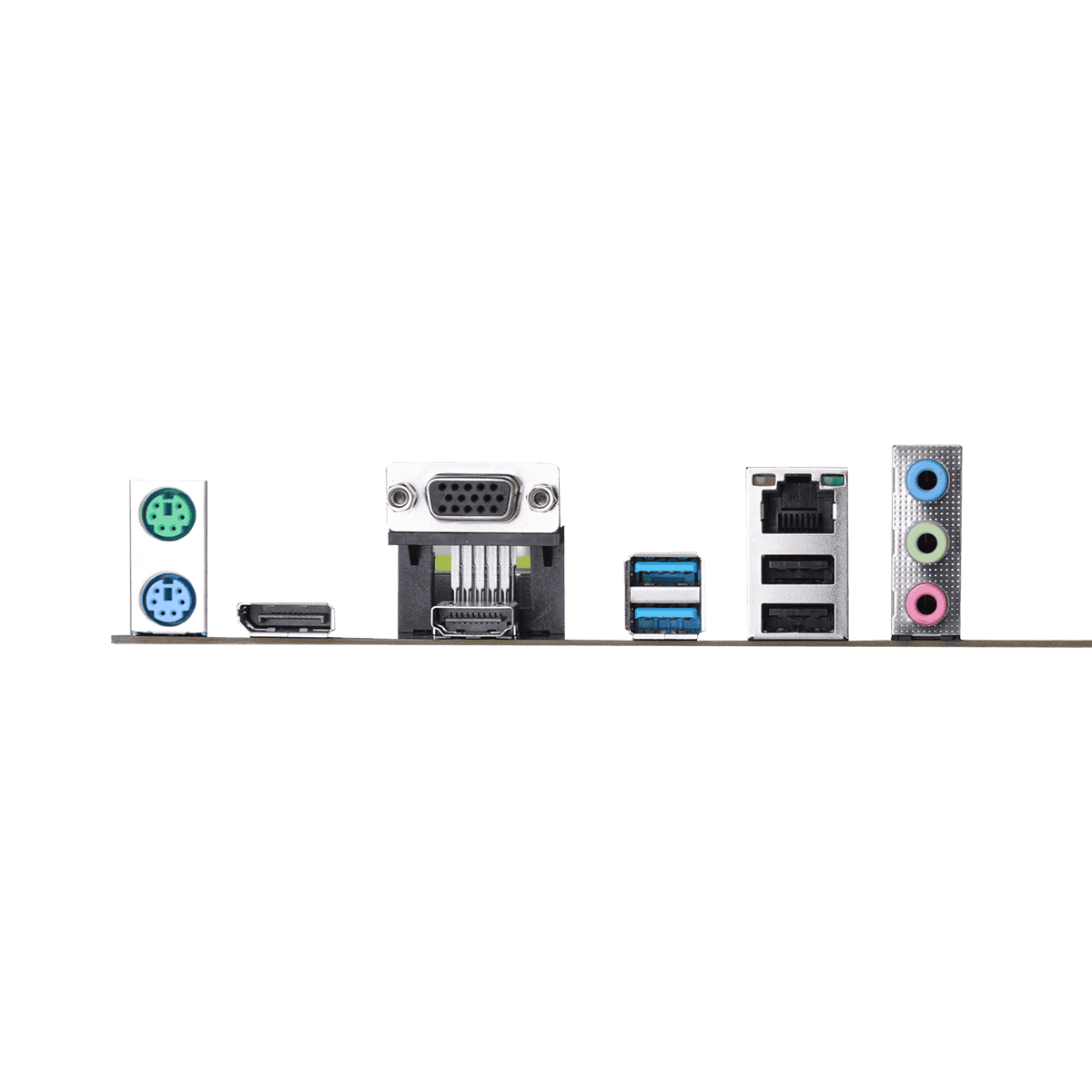

| Rear Panel Interface | 2xUSB3.0, 2xUSB2.0, 1xVGA Interface,1xHDMI2.0 Interface,1xDP1.2 Interface,1x Network Card Interface, 1x3-Hole Audio Interface,1xJVGA PIN |
| Front Panel Interface | 2 xUSB2.0 PIN,1 xUSB3.0 PIN,1 x Front Audio PIN,,1 x Debug PIN,1 x JBAT BIOS PIN 1 x COM PIN,1 x Power On/Restart PIN |
| Support System | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
HUANANZHI H311-VHD4 Motherboard Designed for stability and performance, the HUANANZHI H311-VHD4 Motherboard is an excellent choice for users building a reliable system with Intel LGA1151 platform processors, featuring fast connectivity, flexible expansion, and solid power delivery. Key Features: Chipset: Intel 100 Series Chipset CPU Socket: Supports Intel LGA1151 platform processors Memory Support: 2 × DDR4 memory slots Supports dual-channel DDR4 2666/2400/2133/1866 MHz (depends on CPU) Maximum memory support: 32GB Storage Interface: 4 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCIe 3.0 x16 1 × PCIe 2.0 x1 Expansion Interface: 1 × M.2 2280 NVMe PCIe X4 2.0 slot for high-speed SSDs Audio & Networking: Audio: Realtek High Fidelity Audio Network Card: Gigabit Ethernet Power & Cooling: Power Interface: 24-Pin + 8-Pin connectors Cooling Pins: 1 × CPU_FAN PIN 2 × SYS_FAN PIN Power Supply Design: 6-phase power supply for enhanced durability PCB: 4-layer robust PCB Dimensions: 215mm × 170mm (Micro-ATX Form Factor) Rear I/O Ports: 2 × USB 3.0 ports 2 × USB 2.0 ports 1 × VGA port 1 × HDMI 2.0 port 1 × DP 1.2 port 1 × RJ45 Gigabit Ethernet port 1 × 3-hole audio interface 1 × JVGA PIN Front Panel Connectors: 2 × USB 2.0 PIN headers 1 × USB 3.0 PIN header 1 × Front audio PIN header 1 × Debug PIN header 1 × JBAT BIOS PIN header 1 × COM PIN header 1 × Power On/Restart PIN header Supported Operating Systems: Windows 7 Windows 10 Windows 11 BIOS: AMI UEFI BIOS What's in the Box: 1 × HUANANZHI H311-VHD4 Motherboard 1 × SATA data cable 1 × Warranty card 1 × I/O panel shield
