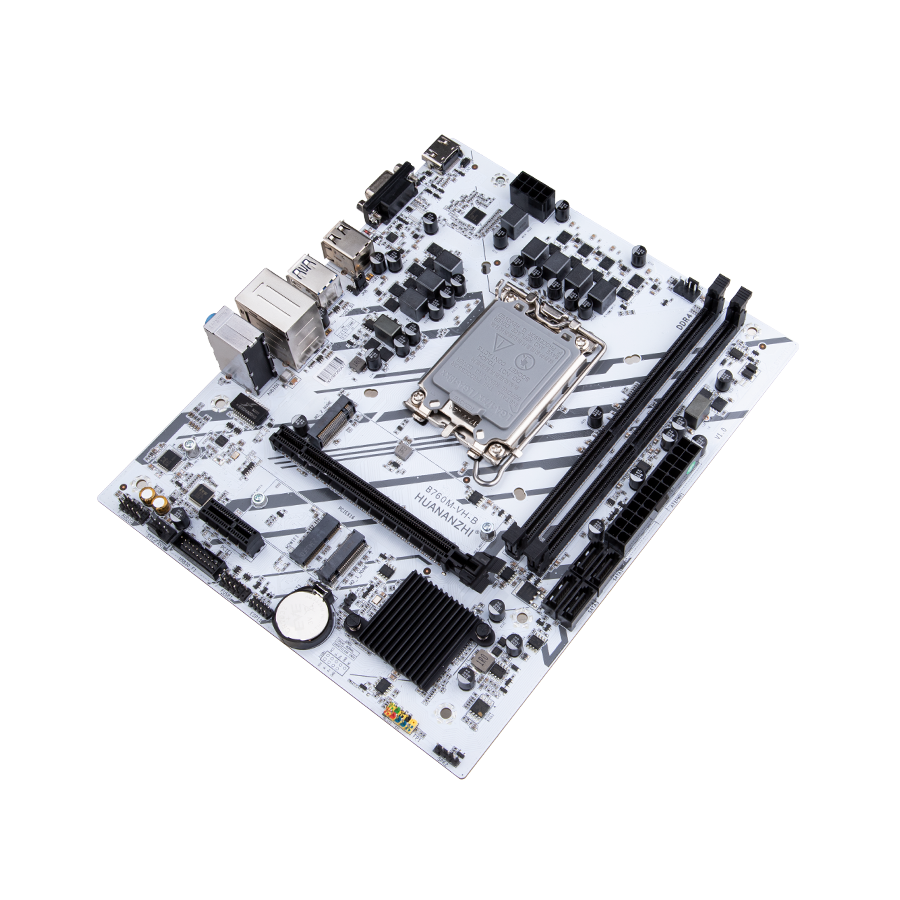

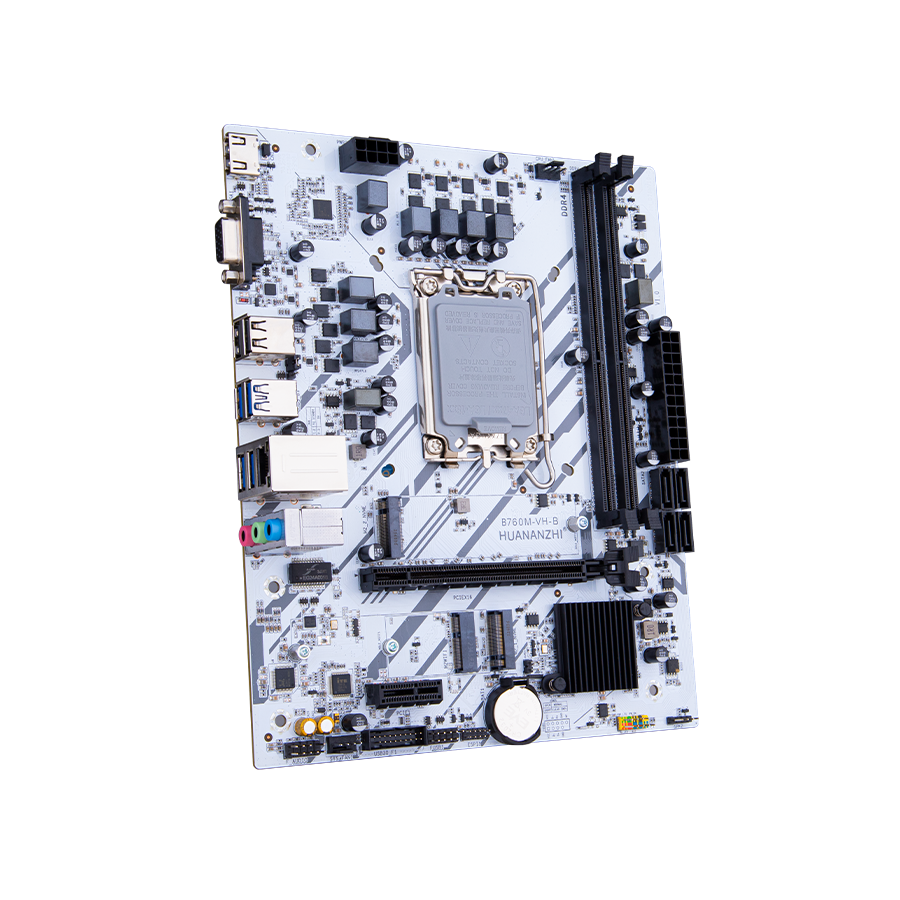

HUANANZHI B760M-VH-A/B White Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model : | HUANANZHI B760M-VH-A/B White Motherboard |
| Chipset : | Intel B760 |
| CPU Socket | Supports IntelLGA1700 |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB |
| Storage Interface | 4xSATA3.0 6Gbps |
| Expansion Slots | 1xPCI Express 4.0 x16，1xPCI Express 3.0 x1 |
| Expansion Interface | 2xM.2 2280 NVME PCIE X4 4.0 ，1xM.2 WIFI |
| Sound Track | Realtek High Definition Audio |
| Network Card | Realtek Gigabit Network Card |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| Power Supply | 8 Phase Power Supply |
| PCB Layers | 4-layer PCB |
| Dimension | 220*180MM M-ATX |
| Rear Panel Interface | 2xUSB2.0 480Mbps，2xUSB3.2 10Gbps，2xUSB3.2 5Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface， 1xVGA Interface，1xHDMI 2.0Interface |
| Front Panel Interface | 1xUSB2.0 480Mbps PIN，1xUSB3.2 5GbpsPIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN |
| Support System | Windows10 Windows11（Support incoming power on/timed power on/network card startup/network wake-up） |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
HUANANZHI B760M-VH-A/B Motherboard – Next-Gen M-ATX Motherboard for Intel 12th/13th/14th Gen LGA1700 CPUs with PCIe 4.0, Dual M.2, and DDR4 Support Build your next high-performance PC with the HUANANZHI B760M-VH-A/B, a feature-packed M-ATX motherboard powered by the Intel B760 chipset. Designed for Intel's 12th, 13th, and 14th Gen LGA1700 processors, this board supports the latest technologies including PCIe 4.0, dual NVMe M.2 SSDs, and fast DDR4 memory, offering a powerful foundation for gaming, productivity, and everyday computing
