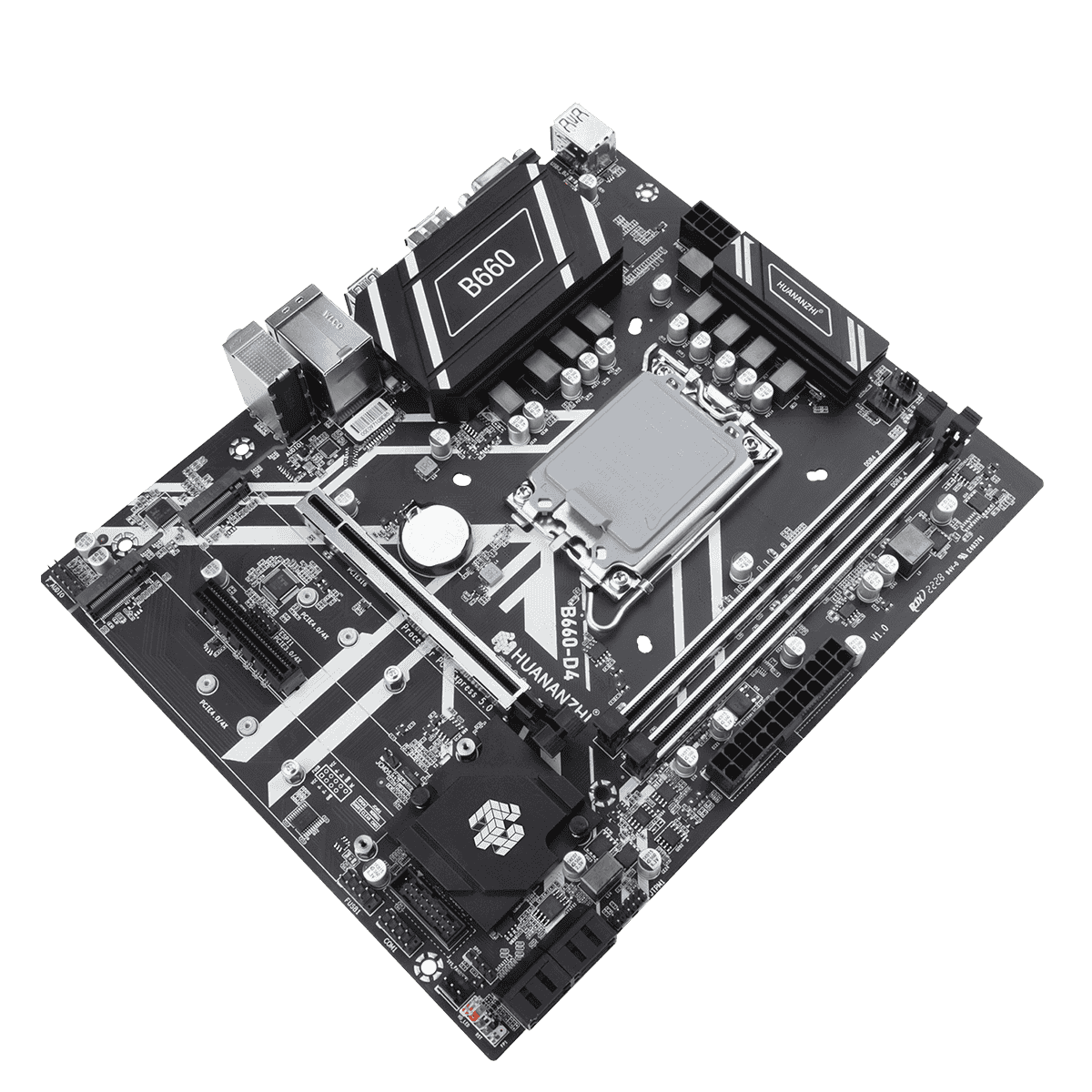

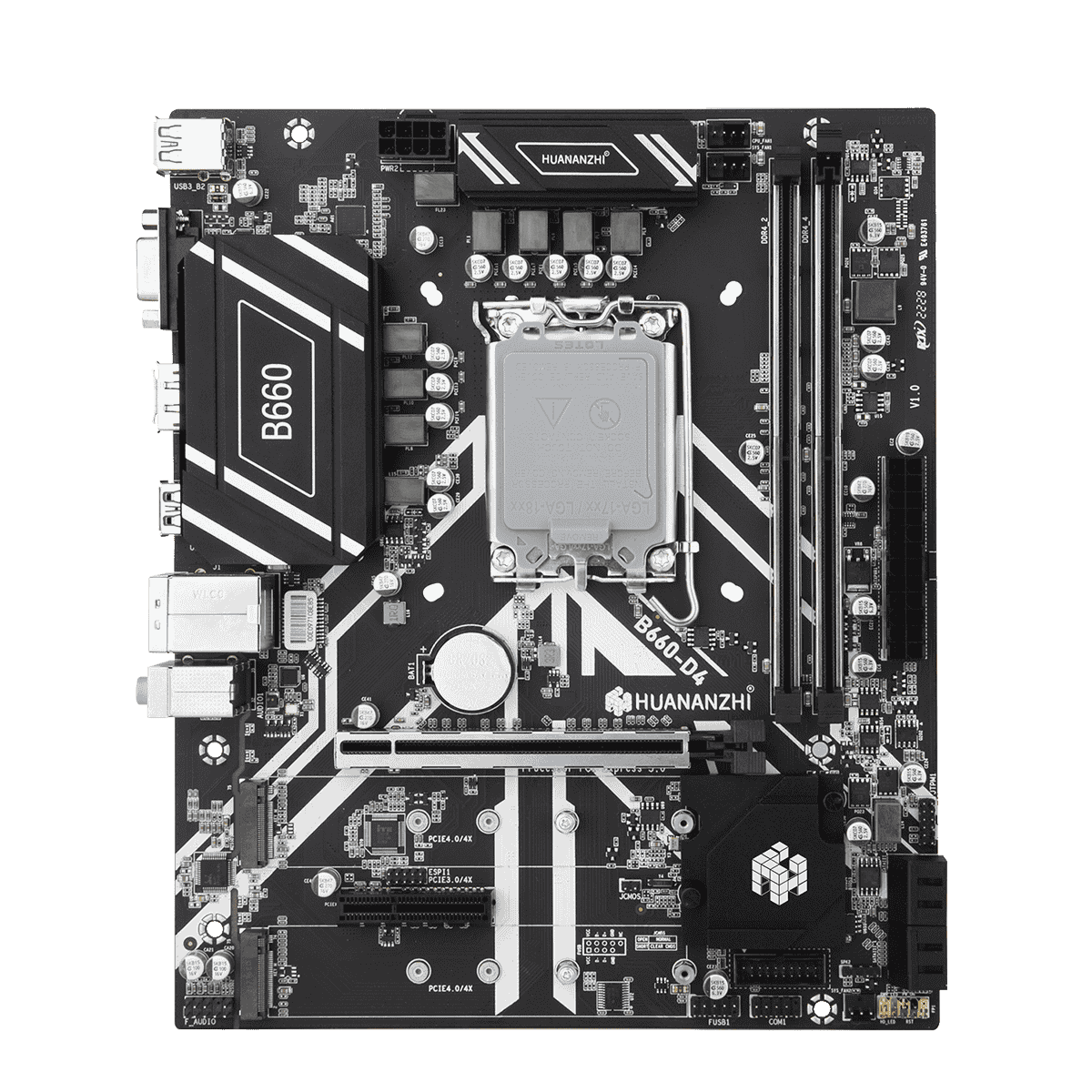

HUANANZHI B660-D4 Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI B660-D4 Motherboard |
| Main chipset | / |
| CPU Socket | Support Intel's 12th 13th generation LGA1700 platform processor |
| Memory slot | 2 x DDR4 memory slot |
| Memory standard | Support Dual channels DDR4 3200/2933/2666/2400MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB |
| Storage interface | 4 x SATA 3.0 6Gbps |
| Expansion Slots | 1 x PCI Express 4.0/5.0x16 ，1 x PCI Express 3.0 x4 |
| Expansion interface | 2 xM.2 22110 NVME PCIE X4 4.0 |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Realtek Gigabit network card RTL8111GUS |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| power supply | 8-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 235*195MM M-ATX |

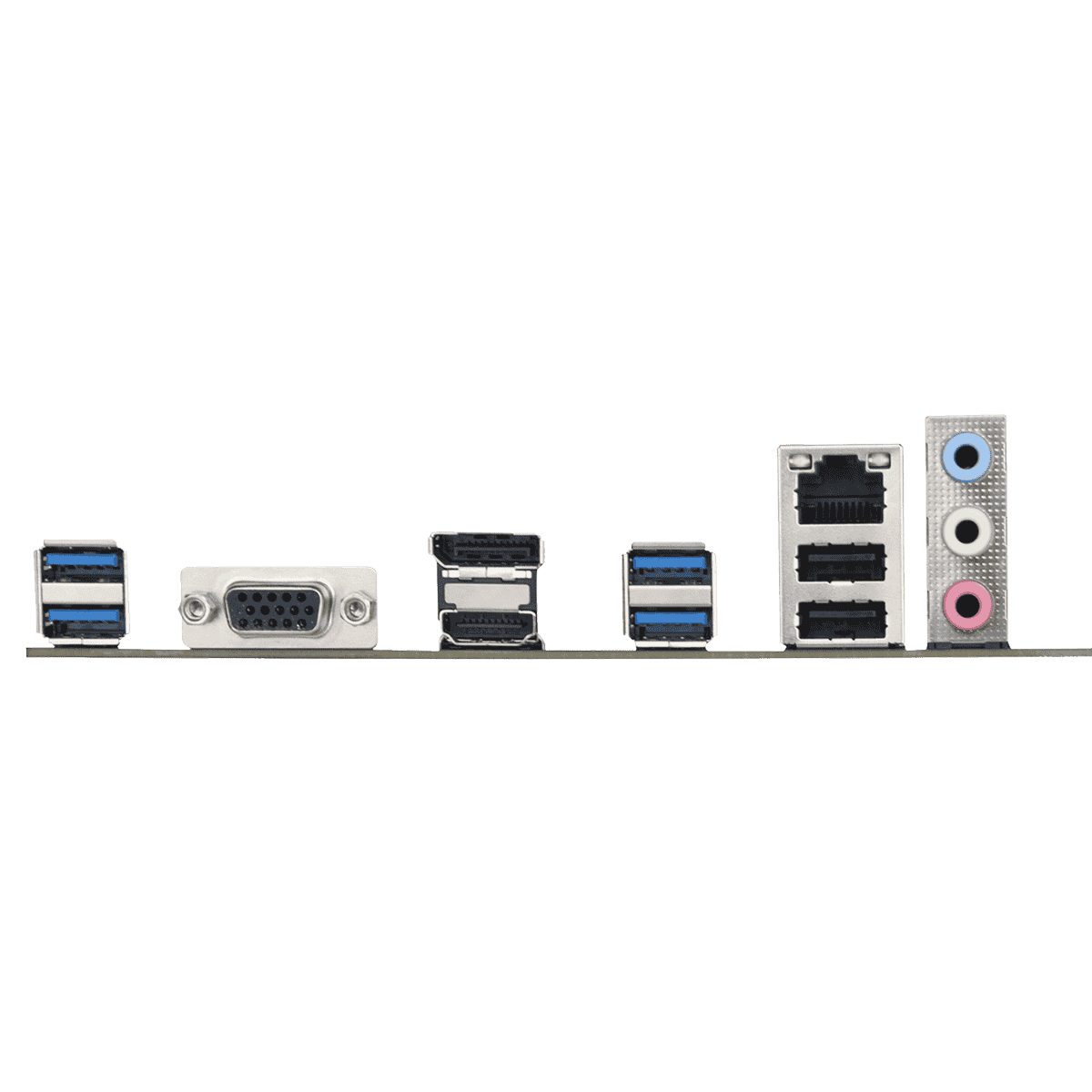

| Rear panel interface | 4xUSB3.0 Interface，2xUSB2.0 Interface，1x VGA Interface，1x HDMI Interface，1x DP Interface，1x Network card interface，1x3-hole audio interface |
| Front panel interface | 1 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio pin，1 x COM PIN，1 x TPM PIN |
| Support system | Windows10 Windows11 |
| BIOS | AMI UEFI Graphics BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
HUANANZHI B660-D4 Motherboard Power up your build with the HUANANZHI B660-D4, a high-performance motherboard designed for Intel’s 12th and 13th generation processors, delivering next-level speed, stability, and expandability. Key Features: CPU Socket: Supports Intel 12th and 13th Gen LGA1700 platform processors Memory Support: 2 × DDR4 memory slots Supports dual-channel DDR4 3200/2933/2666/2400MHz (depends on CPU / XMP supported) Maximum memory support: 64GB Storage Interface: 4 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCI Express 4.0/5.0 x16 1 × PCI Express 3.0 x4 Expansion Interface: 2 × M.2 22110 NVMe PCIe 4.0 slots for ultra-fast storage Audio & Networking: Audio: Realtek High Fidelity Audio Network Card: Realtek Gigabit network card RTL8111GUS Power & Cooling: Power Interface: 24-Pin + 8-Pin connectors Cooling Pins: 1 × CPU_FAN PIN 2 × SYS_FAN PIN Power Supply Design: 8-phase power supply for enhanced stability and performance PCB: 4-layer high-quality PCB Dimensions: 235mm × 195mm (Micro-ATX Form Factor) Rear I/O Ports: 4 × USB 3.0 ports 2 × USB 2.0 ports 1 × VGA port 1 × HDMI port 1 × DisplayPort (DP) 1 × RJ45 Gigabit LAN port 1 × 3-hole audio interface Front Panel Connectors: 1 × USB 2.0 PIN header 1 × USB 3.0 PIN header 1 × Front audio PIN header 1 × COM PIN header 1 × TPM PIN header Supported Operating Systems: Windows 10 Windows 11 BIOS: AMI UEFI Graphics BIOS What's in the Box: 1 × HUANANZHI B660-D4 Motherboard 1 × SATA data cable 1 × Warranty card
