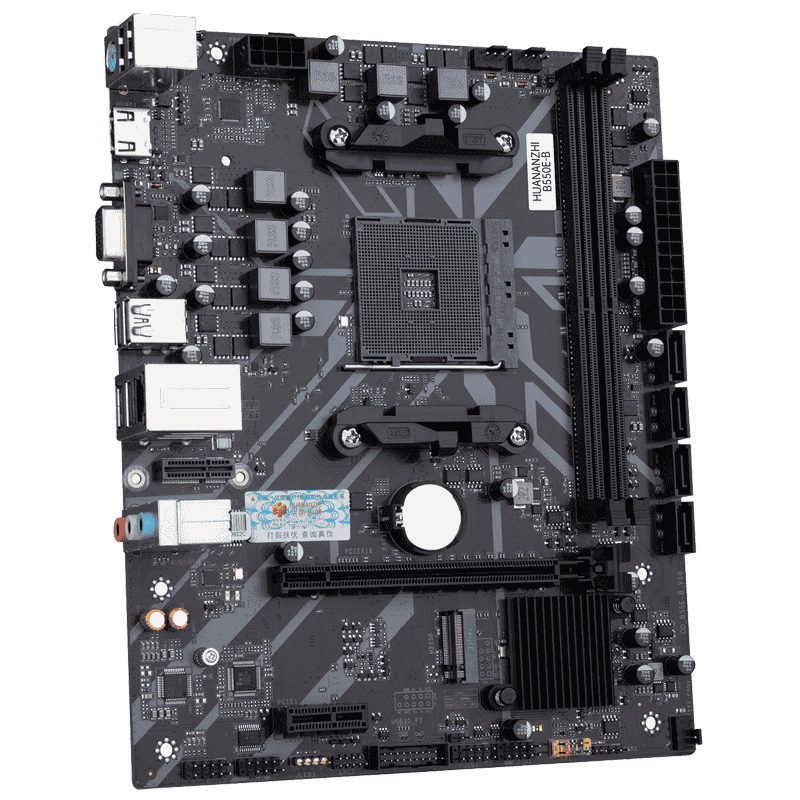

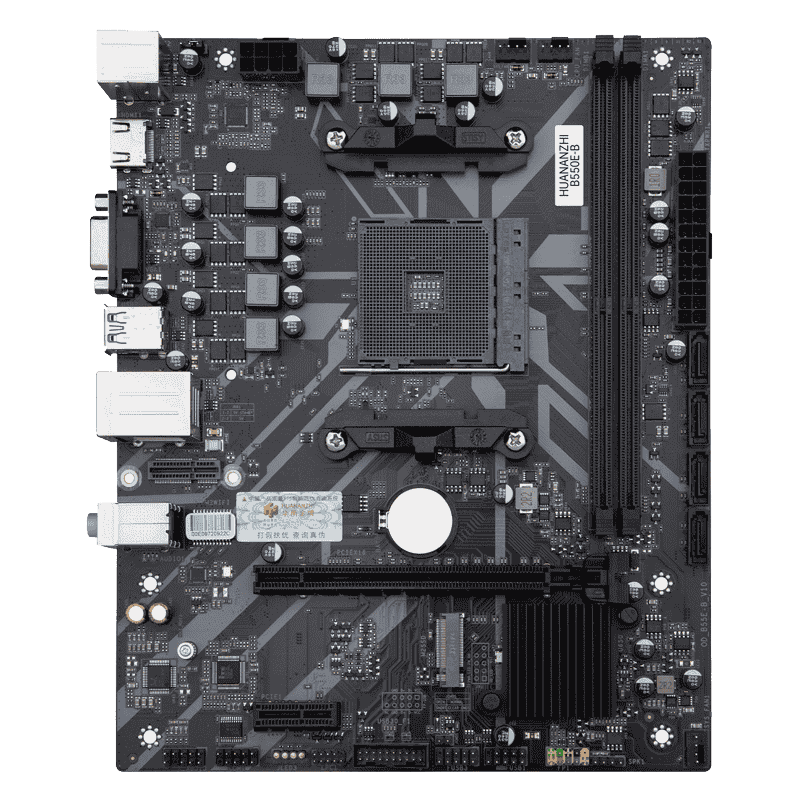

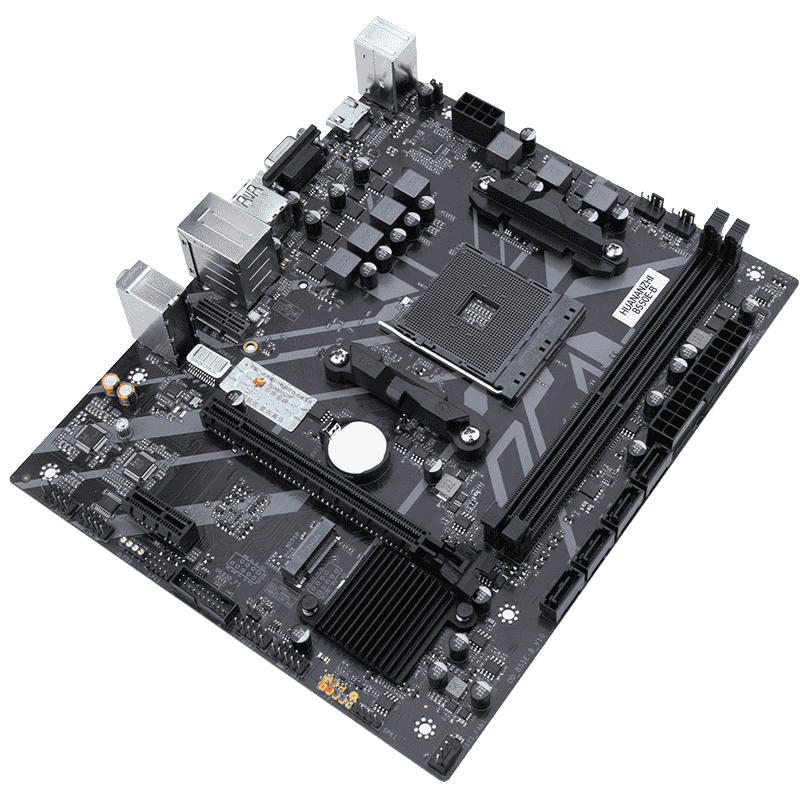

HUANANZHI B550E-B Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | HUANANZHI B550E-B Motherboard |
| Main chipset | AMD B550/PRO 565 |
| CPU Socket | Supports AMD AM4 processors (Ryzen 3000/4000/4000G/5000/5000G series processors) |
| Memory slot | 2 x DDR4 memory slot |
| Memory standard | Support DDR4 2133/2400/2666/3000(OC)/3200(OC)/3600(OC)MHz，Max support64GB |
| Storage interface | 4xSATA3.0 6Gbps interfaces |
| Expansion Slots | 1xPCI Express4.0X16，1xPCIExpress x1 |
| Expansion interface | 1xM.2 SSD interfaces:support PCI-E4.0 X4 NVME SSD& SATA3.0 SSD 1xM.2 WIFI interface (supports PCIE protocol) |
| Sound Track | 3.5mm interfaces，5.1 |
| Network Card | Gigabit network card |
| Power interface | 24pin+8pin |
| FAN PIN | 1x intelligent temperature control CPU fan connector, 2x system fan connector |
| Dimension | 220mm×180mm |

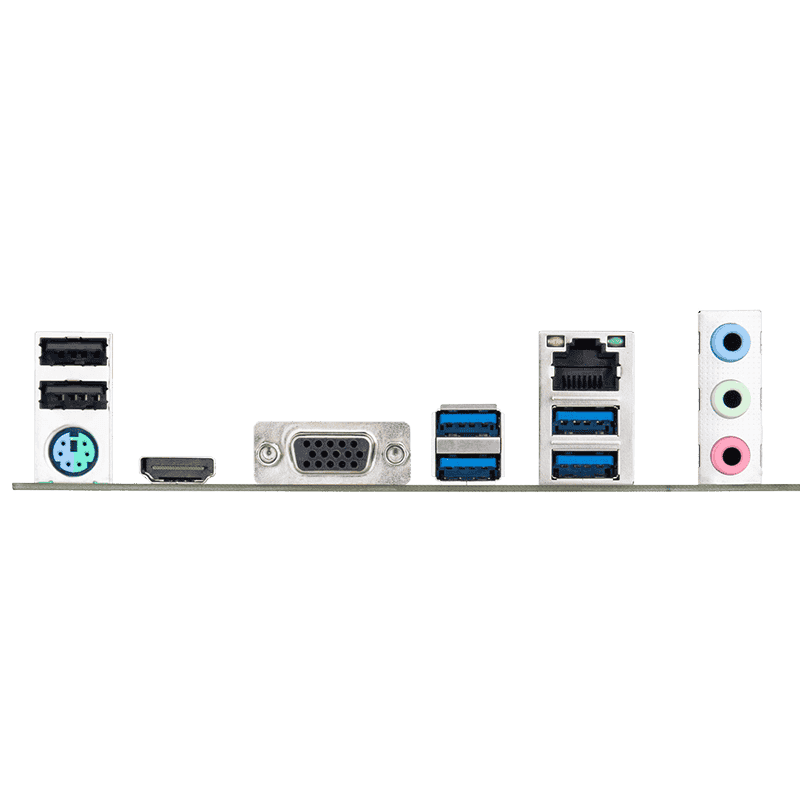

| Rear panel interface | 1xPS/2，4xUSB3.2 Gen1，2xUSB 2.0，1xHDMI，1xVGA，1x Network card interface，1x3-hole audio interface |
| Front panel interface | 2 x USB2.0 PIN，1 x USB3.2 Gen 1PIN，1xRGB light pin (4pin 12v) |
| Support system | Windows10 Windows11 |
| BIOS | AMI EFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description
HUANANZHI B550E-B Motherboard Unlock powerful performance with the HUANANZHI B550E-B, engineered for AMD AM4 processors and designed to deliver exceptional speed, stability, and expandability for gaming, content creation, or everyday use. Key Features: Main Chipset: AMD B550 / PRO 565 CPU Socket: Supports AMD AM4 processors (Ryzen 3000/4000/4000G/5000/5000G series) Memory Support: 2 × DDR4 memory slots Supports DDR4 2133/2400/2666/3000(OC)/3200(OC)/3600(OC) MHz Maximum memory capacity: 64GB Storage Interface: 4 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCIe 4.0 x16 slot 1 × PCIe x1 slot Expansion Interface: 1 × M.2 slot (supports PCIe 4.0 x4 NVMe SSD and SATA 3.0 SSD) 1 × M.2 WiFi interface (supports PCIe protocol) Audio & Networking: Audio: 3.5mm jacks, 5.1 channel surround sound Network: Gigabit Ethernet for fast and stable internet connections Power & Cooling: Power Interface: 24-Pin + 8-Pin connectors Fan Headers: 1 × CPU intelligent temperature control fan connector 2 × System fan connectors Dimensions: 220mm × 180mm (Micro-ATX Form Factor) Rear I/O Ports: 1 × PS/2 port 4 × USB 3.2 Gen 1 ports 2 × USB 2.0 ports 1 × HDMI port 1 × VGA port 1 × RJ45 Gigabit Ethernet port 1 × 3-hole audio jack Front Panel Connectors: 2 × USB 2.0 PIN headers 1 × USB 3.2 Gen 1 PIN header 1 × RGB light pin (4-Pin 12V) for customizable lighting Supported Operating Systems: Windows 10 Windows 11 BIOS: AMI EFI BIOS What's in the Box: 1 × HUANANZHI B550E-B Motherboard 1 × SATA data cable 1 × Warranty card
