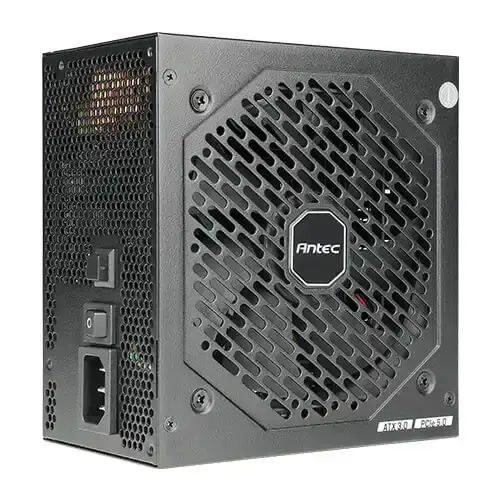

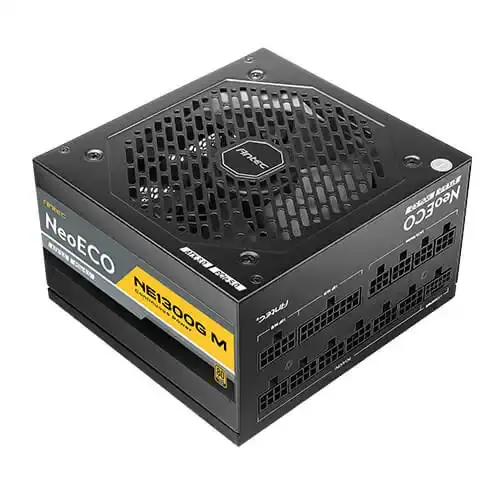

Antec NE1300G M ATX 3.0 1300W 80 Plus Gold Full Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 Plus Gold |
| Fan Size | 120mm Silent Fan |
| Lighting Effect | N/A |
| Others | PFC: Active PFC Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Operation Temperature: 0~40°C Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Voltage | 100V-240V |
| Frequency Range | 50Hz-60Hz |
| Current | 15A-7.5A |
| Modular Type | Full-Modular |
| Total Power | 1300W |
| Main Power | 1 x 24 (20+4) pin MB |
| CPU | 2 x 8(4+4)pin CPU |
| PCI-E | 1 x 16(12+4)pin PCIE 5.0 12VHPWR 4 x 8(6+2) Pin PCI-E |
| SATA | 12 x SATA |
| Molex | 4 x Molex |
| Manufacturing Warranty | 10 Years replacement warranty including Burn Cases |
Description
The Antec NE1300G M ATX 3.0 1300W 80 Plus Gold Full Modular Power Supply is designed for gamers and enthusiasts that require the highest level of performance and stability. It is compatible with both ATX 3.0 and PCIe 5.0, ensuring future-proofing for the most recent hardware developments. This Antec 1300W PSU incorporates high-quality JP capacitors and a novel PhaseWave architecture, which contribute to its exceptional dependability and stability. The addition of a 120mm Fluid Dynamic Bearing (FDB) silent fan ensures optimal cooling while minimizing noise, improving overall system performance. Its fully modular cable management system makes installation easier and reduces wire clutter, promoting improved ventilation and organization within the enclosure. With an input voltage range of 100V-240V and an input current of 15A-7.5A, it delivers reliable power with an output capacity of 1300W, catering to high-demand systems. The Antec NE1300G M ATX 3.0 1300W 80 Plus Gold PSU has an operating temperature range of 0-40°C, ensuring constant performance under different situations. It also includes comprehensive protection features such as Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge and Inrush Protection (SIP), and No Load Operation (NLO). The Antec NE1300G M ATX 3.0 1300W 80 Plus Gold Full Modular Power Supply has received many regulatory certifications, including cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, and ICES, indicating that it adheres to global safety standards. Connectivity possibilities are plentiful, with 1 x 24 (20+4) pin motherboard connector, 1 x 16 (12+4) pin PCIe 5.0 12VHPWR, 2 x 8 (4+4) pin CPU connectors, 4 x 8 (6+2) pin PCI-E connectors, 12 x SATA connectors, and 4 x Molex connectors.
