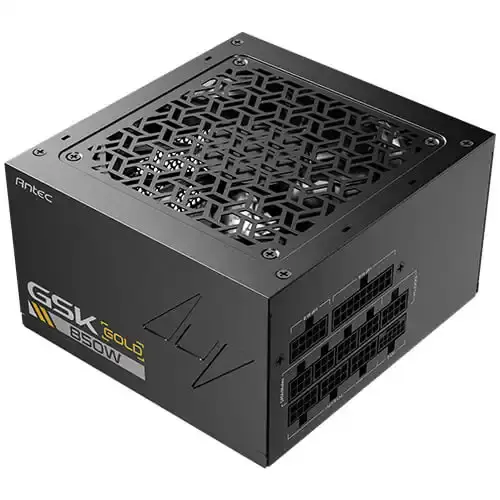

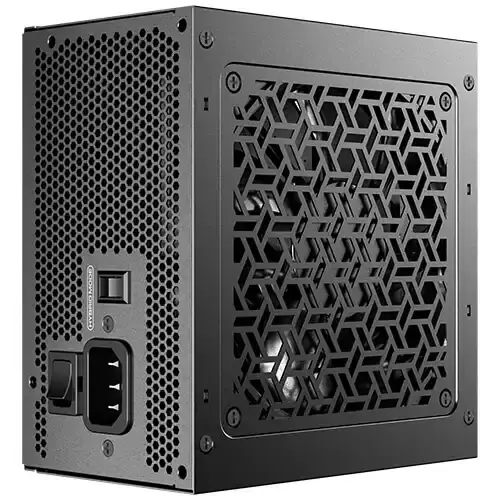

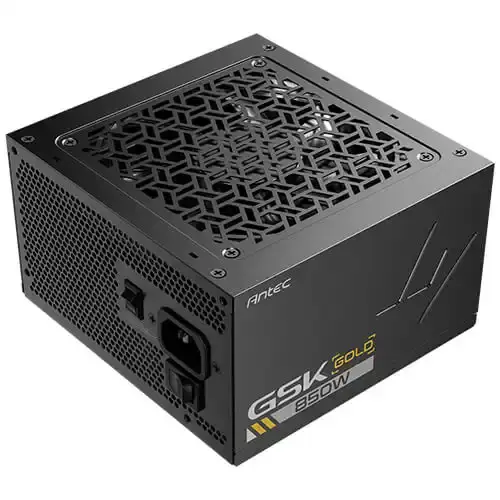

Antec GSK ATX3.1 850W 80 Plus Gold Full Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 Plus Gold |
| Fan Size | 120mm Silent Fan |
| Lighting Effect | N/A |
| Others | PFC: Active PFC Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Operation Temperature: 0~40°C Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC/ UKCA / ICES |
| Voltage | 100V-240V |
| Frequency Range | 50Hz-60Hz |
| Current | 10A Max |
| Modular Type | Full-Modular |
| Total Power | 850W |
| Main Power | 1 x 24 (20+4) pin MB |
| CPU | 2 x 8(4+4)pin CPU |
| PCI-E | 1 x 16 (12+4) pin PCIE 5.1 12VHPWR 4 x 8 (6+2) pin PCI-E |
| SATA | 8 x SATA |
| Molex | 4 x Molex |
| Manufacturing Warranty | 10 Years replacement warranty including Burn Cases |
Description
The Antec GSK ATX3.1 850W 80 Plus Gold Full Modular Power Supply provides high-performance power. It is compatible with ATX 3.1 and PCIe 5.1 standards, allowing for easy integration with cutting-edge gear. The unit's high-quality JP capacitors provide stable and efficient performance. The PhaseWave architecture enhances its stability and endurance. This Antec GSK ATX3.1 850W 80 Plus Gold PSU has a wide range of industrial-grade protections, including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), and No Load Operation (NLO). It is equipped with a 120mm Fluid Dynamic Bearing (FDB) silent fan, which delivers excellent cooling while remaining quiet. The fully modular cable management system simplifies installation and reduces cable clutter, hence optimizing airflow within the case. This Antec GSK ATX3.1 850W 80 Plus Gold Power Supply is versatile and sturdy, capable of generating a consistent 850W output while operating within an input voltage range of 100V-240V and with a maximum input current of 10A. It performs reliably at temperatures ranging from 0 to 40°C. The Antec GSK ATX3.1 850W Power Supply features various certifications, including cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, and ICES, demonstrating conformity with global safety standards. It comes with a variety of connectors, including 1 x 24 (20+4) pin motherboard connector, 1 x 16 (12+4) pin PCIe 5.1 12VHPWR, 2 x 8 (4+4) pin CPU connectors, 4 x 8 (6+2) pin PCI-E connectors, 8 SATA connectors, and 4 Molex connectors.
