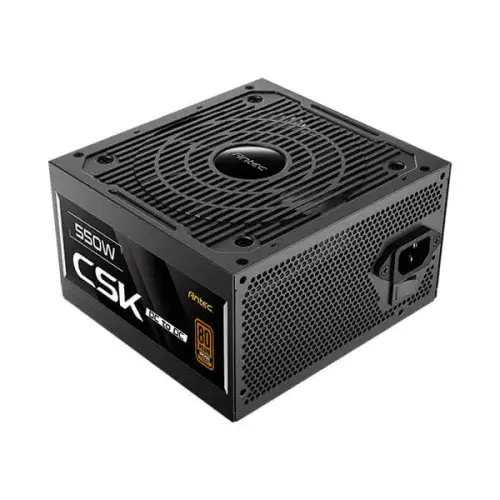

Antec CSK 550DC 550W 80+ Bronze Non-Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 PLUS BRONZE |
| Fan Size | 120mm Silent Fan |
| Others | PFC: Active PFC Power Good Signal: 100-500ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES/BIS |
| Voltage | 100V-240V |
| Frequency Range | 50Hz-60Hz |
| Current | 12A Max |
| Modular Type | Non-modular |
| Total Power | 550W |
| Main Power | 1 x 24(20+4)pin MB |
| CPU | 2 x 8(4+4)pin CPU |
| PCI-E | 2 x 8(6+2)pin PCI-E |
| SATA | 6 x SATA |
| Molex | 3 x Molex |
| Manufacturing Warranty | 6 Years replacement warranty including Burn Cases |
Description
The Antec CSK 550DC 550W 80+ Bronze Non-Modular Power Supply provides energy efficiency, outstanding performance, and reliable power delivery. This non-modular PSU is appropriate for mid-range gaming and productivity systems because it is built to ATX 12V 2.52 standards and is intended to provide a steady 550 watts of power. With a broad input voltage range of 100V to 240V, a maximum input current of 12A, and a frequency range of 50Hz to 60Hz, the Antec CSK 550DC 550W 80+ Bronze Power Supply ensures steady performance in a variety of settings. The Antec CSK 550DC 550W Power Supply, which has Active Power Factor Correction (APFC), maximizes power consumption and reduces electrical waste, which improves system performance. The Antec CSK DC PSU, certified with an 80 Plus Bronze rating, guarantees decreased energy loss and increased overall efficiency. A 120mm silent fan is ideal for quiet setups because it effectively cools while producing little noise. With its extensive protection suite, which includes Surge and Inrush Protection (SIP), Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), and No Load Operation (NLO), the Antec CSK 550DC 550W Non-Modular Power Supply protects components from unforeseen power outages. With one 24(20+4) pin motherboard connector, two 8(4+4) pin CPU connectors, two 6+2 pin PCI-E connectors for graphics cards, six SATA connectors for storage devices, and three Molex connectors for legacy hardware, the Antec CSK 550DC 550W Power Supply supports contemporary system designs. The Antec 550W Power Supply is certified by international safety and regulatory bodies such as cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, and BIS and operates in the temperature range of 0 to 40°C.
